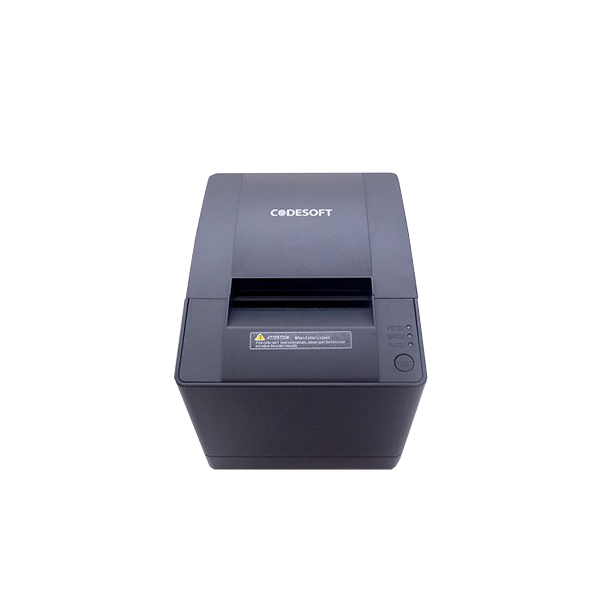

Code Soft TP-3260VL Thermal Receipt Printer (USB + Serial + Ethernet)
enlarge
  • NULL
  • NULL
  • NULL

Code Soft TP-3260VL Thermal Receipt Printer (USB + Serial + Ethernet)

RM509.00
Item details
SKU: TP-3260VL
Weight: 2 kg, 0 grams
Stock: Out of stock

Brand: Code Soft
  Share This   Add To Facebook

Product details of Codesoft TP-3160S thermal receipt printer (LPT / USB / RS232)

Features


 − Faster network connection and printing, not more “Printing Missing”
 TP-3260 is built in 100M/10M Base/T network interface card which provide faster network connection and printing , eliminate delayed time and modify the program to print out al the receipts, provide better compatibility for wider application.
 − Support WAN printing
TP-3260 support connect to Wide Area Network printing through LAN router.
 − Support Network Auto-reconnect after disconnect
Support auto-connect function after network disconnected

 − Support black mark sensor
 User can choose black mark location to be on the right, left, middle of the paper.

− Built - in Web-IP tools
User can change IP address, ID address, Gateway, sub - net mask, check printer status and get dynamic IP address through Web-IP automatically without installing the IP tools, provide more friendly operation interface.

− Printer status monitoring
- Monitoring the top cover status, paper status, cutter faulty status and button status.
 - Monitoring the printing status, task competing status and pending task status.
- Monitoring printer network connection status – ON or OFF by sending command.
Feature TP-3260
Weight 1.5kg
Interfaces USB + serial + Ethernet
Dimensions 151 X 204 X 145mm
Operating Temperature 0 to 45 degree Celsius
Storage Temperature 0 to 60 degree Celsius
Humidity 10~90%
Power Cash Drawer: DC 12-24V / 1A, 2 Drawer; Power Supply: DC 24V / 2.5A
Electrical Safety 3C , CE
Print Width 80mm: 72mm / 576dots & 64mm / 512dots
Printing Method 9-Pin Serial Impact Dot Matrix Printing
Dot Pitch 576dots/line & 512dots/line
Printing Speed 250mm/sec (60 lines/sec)
Paper 79.5 +- 0.5MM @ 83mm
Drawer Kickout DC 12-24V / 1A, 2 Drawer
Compatible ESC / POS / STAR
Print Method Thermal Line Printing
Print Speed 260mm/sec
Line Space 3.75mm
Character Size ANK Character, Front A : 1.5 x 3.0mm ( 12 x 24 dots ) Font B: 1.1 x 2.1mm ( 9 x 17 dots ) Simplified / Traditional Chinese : 3.0 x 3.0mm ( 24 x 24 dots )
Code Page PC437 / Katakana / PC850 / PC860 / PC863 / PC865 WPC1252 / PC866 / PC852c / PC858 / Latvian / Arabic / PT151, 1251
Barcode Mode UPC-A/UPC-E/JAN-13/EAN-8/CODABAR/ITF/CODE39/CODE93/CODE128
Buffer Data: 256K bytes; NV user memory: 256K bytes
Auto Cutter Full or Partial
Number of columns 80mm: Front A - 42 columns / 48 columns / Front B - 56 columns / 64 columns / Simplified / Traditional Chinese - 21 columns / 24 columns
Reliability 100km
Driver Win 9X / XP / NT / 2K / Vista / 7 / LINUX / OPOS
Command ECS / POS , STAR
