Big Print BP-301 Thermal Receipt Printer (USB + RS232 + LAN)

Big Print BP-301 Thermal Receipt Printer (USB + RS232 + LAN)

Item details
SKU: BP-301
Weight: 2 kg, 0 grams
Stock: Out of stock

Brand: BIG
  Share This   Add To Facebook

Big Print BP-302/BP-301 Thermal Receipt Printer (USB or LAN )

Thermal Receipt Printer
Fast, Reliable and Easy To Configure

The BP-301 AND BP-302 is the ergonomic designed POS thermal printer. It is fast, reliable, easy to configure and supports all the leading windows operating systems. It features fast printing up to 200mm/second, trusted reliability, is perfect for use in retail or restaurant environments.

ESC/POS command sets compatible
Interface: Serial + USB or LAN port
200mm/sec high print speed
Support Windows 32/64bits / Linux


Print Method Direct thermal
Printing Width 80mm
Printing Speed 200mm/second
Auto Cutter Partial Cut
Dot Density 512dot/line or 576dot/line
Paper 79.5±0.5mm (width), 0.06~0.08mm (thickness), 72mm (roll diameter)
Interface Serial + USB or LAN
Command ESC/POS command
Character Size ANK Font, Font A: 1.5×3.0mm (12x24dots), Font B: 1.1×2.1mm (9x17dots), Simplified /Traditional Chinese Font: 24x24dots
Input Buffer 64K Bytes
NV Flash 256K Bytes
Barcode Type UPC-A /UPC-E /EAN13 /EAN8 /CODE39 /ITF /CODEBAR /CODE93 /CODE128
Operating Temperature 0ºC to 45ºC (operating); -10ºC to 60ºC (storage)
Cutter Life 1 million cuts
Print Head Life 50km
Driver Available Win 9X/ Win ME/ Win 2003/ Win NT/ Win XP/ Win Vista/ Win 7/ Win 8/ Win10/ Linux
Gross Weight 1.04kg
Dimension 190 x 140 x 131mm (DxWxH)


Power Supply DC 24V/2.5A
Cash Drawer Input DC 24V/1A

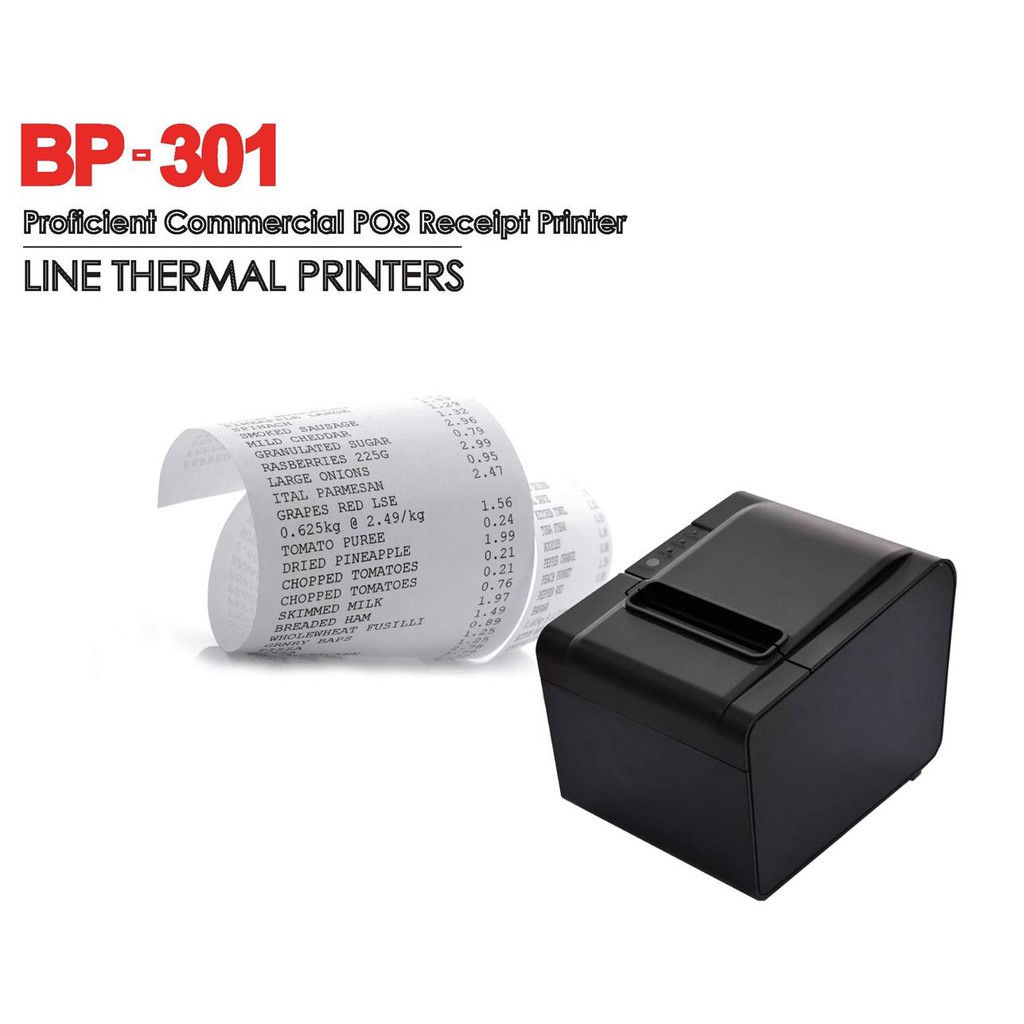

Image result for Big Print BP-301
